1. Product Name

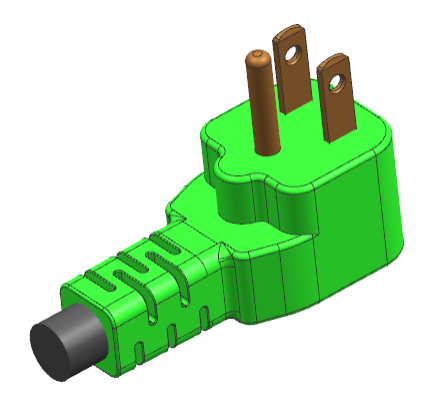

Charging Plug with Station Logo and Temperature Signal Feedback (STL07)
2. Applicable Countries/Regions
Taiwan, China; Japan; United States
3. Rated Current
15 A
4. Rated Voltage
125 V
5. Product Advantages
-
Plug dimensions comply with Type B (15 A 125 V) requirements.
-
Operating temperature range: -40 ℃ to 105 ℃.
-
Ingress protection: IP67.
-
Flexing test: ≥ 20,000 cycles.
-
Drop test: ≥ 10,000 cycles.
-
NTC temperature sensors are built-in near the terminal edges of the live and neutral wires respectively, enabling accurate and effective real-time temperature monitoring under load.
-
During charging, the internal actual temperature is determined by the resistance value fed back from the NTC sensors.
-
When the temperature corresponding to the feedback resistance exceeds the set value, the power will be cut off automatically for safer and more reliable use.
6. Product Standards
CNS 10917, CNS 690
7. Wiring Standard
UL 2263
8. Product Certification
BSMI certified
