1. Product Name

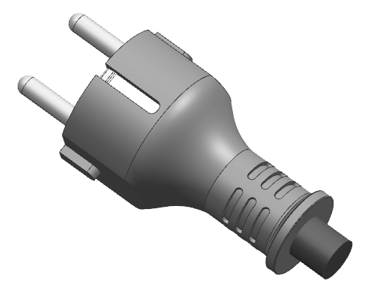

EU Standard Charging Plug with Temperature Signal Feedback (STB07)
2. Applicable Countries
All European countries
3. Rated Current
16 A
4. Rated Voltage
250 V
5. Product Advantages
-
Plug dimensions comply with Type E/F requirements, suitable for use in European countries.
-
Operating temperature range: -40 ℃ to 105 ℃.
-
Ingress protection: IP67.
-
Flexing test: ≥ 20,000 cycles.
-
Drop test: ≥ 10,000 cycles.
-
NTC temperature sensors are built-in near the edges of live and neutral terminals respectively, enabling accurate and effective real-time temperature monitoring under load.
-
During charging, the actual internal temperature is determined by the resistance value fed back from the NTC sensors.
-
When the temperature corresponding to the feedback resistance exceeds the set value, automatic power-off is activated for safer and more reliable operation.
6. Product Standard
IEC 60884-1, VDE 0620-2-1
7. Wiring Standard
EN 50620, IEC 62893
