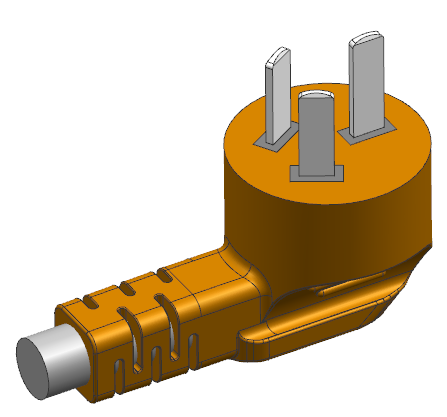

Chinese Standard Charging Plug with Temperature Control Protection (STF26)
Author： Time：2025-11-30 Hit：4
1. Product Name
Chinese Standard Charging Plug with Temperature Control Protection (STF26)
2. Applicable Country
China
3. Rated Current
10 A
4. Rated Voltage
250 V
5. Product Advantages
-
Plug meets performance requirements of GB 2099.1 (10A) and dimensional requirements of GB 1002.
-
Operating temperature range: -40 ℃ to 105 ℃.
-
Ingress protection: IP67.
-
Insertion/extraction cycles: ≥ 20,000 times.
-
Flexing cycles: ≥ 20,000 times.
-
Drop test: ≥ 1,000 times.
-
Temperature switches are built-in near the edges of live and neutral terminals respectively.
-
When the temperature rises to the rated value during charging, the device inside the switch will cut off the power automatically.
-
More accurate temperature sensing, safer and more reliable in use.
6. Product Standards
GB 2099.1, CQC 1164
7. Wiring Standard
GB/T 33594
8. Product Certification
Certified by China CQC
